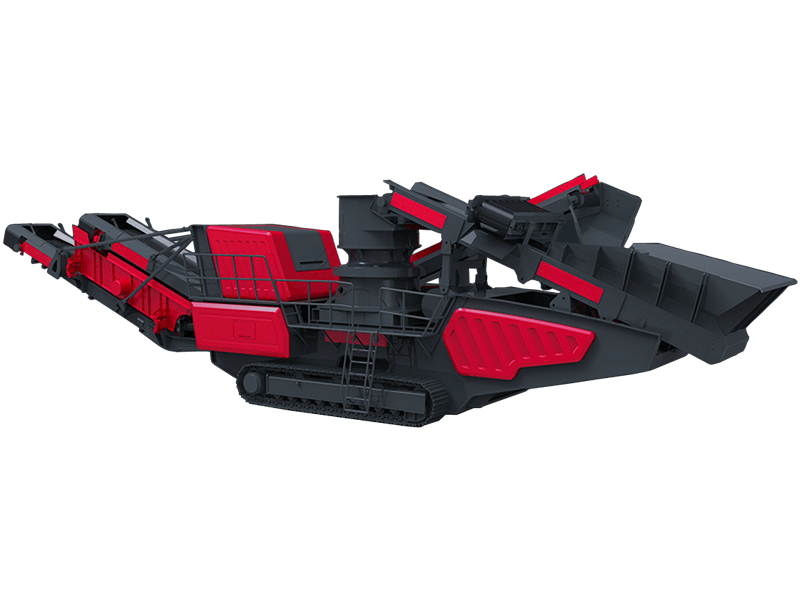

DWT Series Mobile Cone Crusher Plant

  • 150-329

    Capacity(t/h)
  • 261-400

    Power(kw)
  • 37-49

    Weight(t)
  • Tracked

    Drive mode

Introduction

Product Introduction:

Tracked Mobile cone Crusher Plant is a kind of high efficiency crushing equipment. It is self-driven, with advanced technology and complete functions. In and terrain conditions, this equipemnt can reach the place of any position. This can reduces the materials processing operations and facilitates all the coordination of auxiliary machinery. By wireless or wired remote manipulation, it is easy to drive the crushier on the trailier and transport it to the work site.

As no assembly time, so the equipment can work immediately at the work site, greatly expanding the field of coarse crushing and fine crushing operation concept. The design purpose of crawler mobile crushing station is to stand in customer’s position, put the elimination of obstacles to customers crushing operations brought by crushing site, environment and complex basic configuration as the primary solution and truly provide customers with simple, high efficient and low cost project operation facilities.


Scope of use:

It can be widely used in Minerals and Hard rock Crushing, Aggregates Processing, Slag Processing, Tunnel Crushing. The main raw materials are river pebbles, rocks( limestone, granite, basalt, diabases, andesite, etc.), ore tailing.



Product Features & Advantages:

(1) Fuel oil saving rate can reach 25%, and the sieving mode is not only in line with environmental protection but low cost.

(2) Convenient transport, no harm to road, multifunctional equipments and wide application scope.

(3) Turning in place with the capability of all-wheel drive, standard configuration, fast equipment changing, perfect protection system, best fit in narrow and complicated terrains.

(4) Light weight, small size and best fit in narrow place.

(5) The moving screen equipment uses double-deck sieving machinery, which main frame equipped with excellent grid screening gallery, can stand freely without support.

(6) The attaching power package is the most optimized design.

(7)  Mechatronic-hydraulical integrated multifunctional construction machinery and highly constructed with the small, medium and large size


Parameters



DWT-C Series Mobile Cone Crusher Plants

DWT-C01

DWT-C11

DWT-C02

Max feed size (mm)

160

180

260

Discharge setting (mm)

9-32

9-32

9-51

Crushing capacity (t/h)

up to 150

up to 200

up to 320

Driving unit

Engine

Cummins or CAT

Cummins or CAT

Cummins or CAT

Power (kw)

261

317

400

Feed hopper

Hopper volume (m³)

4

4

6

The feeding belt conveyor

Belt width(mm)

800

800

1000

Discharging belt conveyor

Belt width(mm)

1000

1000

1200

Crawler unit

Drive

hydraulic

hydraulic

hydraulic

Dimensions and weights

Working dimensions

L x W x H mm

13767x3621x4497

13850x3650x4550

14530x4150x4720

Transport dimensions

L x W x H mm

14273x3543x4024

14320x3570x4050

14900x3640x4130

-Weight (t) Approximately

37

39.5

49

Note:

1. The processing capacity is the data when the density of the broken material is 1.6x103 kg/m3. The production capacity is related to the physical properties of the crushed material, the feeding mode, the feeding granularity and its composition;

2. Our products are constantly updated and improved, Devo reserves the right to change parameters and design without first notifying the user;

3. The above product configuration is not necessarily the factory standard configuration. Please consult us in detail when purchasing.
