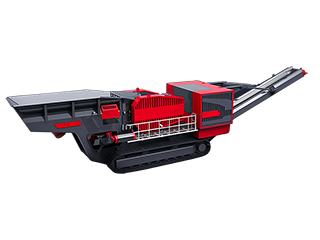

DWT Series Mobile Jaw Crusher Plant

  • 85-800

    Capacity(t/h)
  • 164-390

    Power(kw)
  • 39-115

    Weight(t)
  • Tracked

    Drive mode

Introduction

Product Introduction:

Tracked Mobile Jaw Crusher Plant is designed and manufactured with Dewo self-developed technology, and it has reached the world advanced level. The plant adopts first level mobile crushing technology which fully meets the customer’s requirements for mobile crushing and changes your profit mode



Scope of use:

It can be widely used in minerals and hardrock crushing, aggregate processing, construction wast recycling, slag processing, tunnel crushing and cement raw materials processing.



Product Features & Advantages:

(1) Mobile crushing plant has light weight, small volume and best fits narrow space

(2)Easy transport, crawler walking, equipped with multi-function units and no damage to road surface, the mobile crushing plant can be applied in different circumstances

(3) Mechatronic-hydraulical integrated multifunctional construction machinery, highly constructed with the small, medium and large size

(4) The machine adopts all wheel drive and can turn fixedly, it has standard configuration and quick change device, with perfect security protection function, it is especially suitable for narrow and complex space

(5) The moving screen equipment uses the main structure of double-deck screening machine. It is equipped with excellent grid screening channel and can stand freely without support

(6) Fuel saving rate is up to 25%, which not only conforms to the need of environmental protection but also save the cost

(7) The attaching power package is the most optimized design

(8) Mobile crushing plant can satisfy different crushing circumstances such as mine, hydro-power station, coal mining and other engineering requirements


Parameters


DWT-J Series Mobile Jaw Crushing Plants

DWT-J6

DWT-J7

DWT-J8

DWT-J10

Feed opening (mm × mm)

600 × 1020

760 × 1020

850 × 1100

1070 × 1400

Max feed size (mm)

500

630

720

950

Discharge setting (mm)

60-175

70-200

90-215

125-250

Crushing capacity (t/h)

85-280

120-490

160-510

360-800

Driving unit

Engine

Cummins Tier3

CAT C9

CAT C12

CAT C15

Power (kw)

164

242

317

390

Feed hopper

Hopper volume (m³)

6

7

8

10

Grizzly feeder with pre-screening

Model

GSF3712

GSF4316

GSF4316

GSF5920

Drive

Hydraulic

Hydraulic

Hydraulic

Hydraulic

Main conveyor belt

Belt width (mm)

1000

1000

1200

1400

The unearthed belt conveyor

Belt width (mm)

650

650

650

650

Crawler unit

Drive

Hydraulic

Hydraulic

Hydraulic

Hydraulic

Permannet magnetic separator

Magnetic separator

option

option

option

option

Dimensions and weight

Working dimensions

L x W x H  (mm)

12600x4060x4160

14800x4100x4400

16000x4200x4400

16500x4300x6000

Transport dimensions

L x W x H  (mm)

12600x2760x3460

14600x2850x3900

16000x3200x3800

16000x3500x3900

Weight (t)  Approximately

39

48

65

115

Note:

1. The processing capacity is the data when the density of the broken material is 1.6x103 kg/m3. The production capacity is related to the physical properties of the crushed material, the feeding mode, the feeding granularity and its composition;

2. Our products are constantly updated and improved, Devo reserves the right to change parameters and design without first notifying the user;

3. The above product configuration is not necessarily the factory standard configuration. Please consult us in detail when purchasing.
