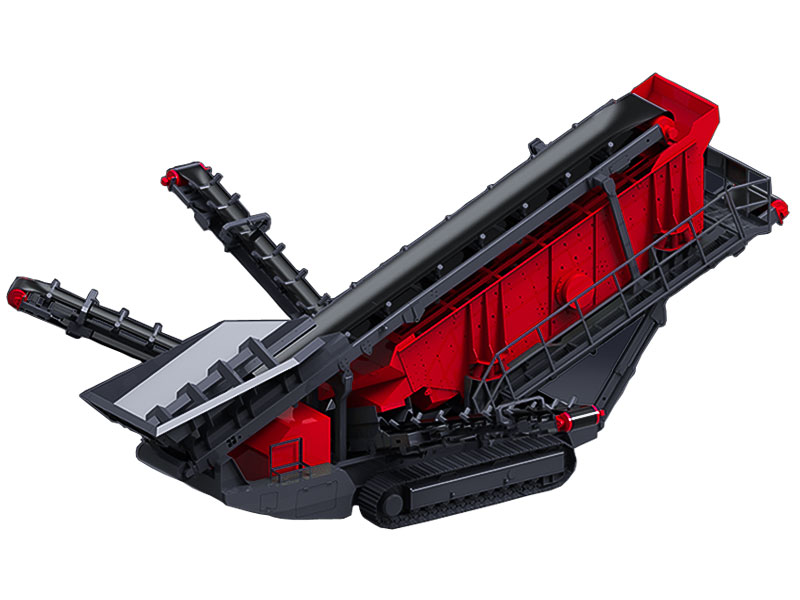

DWT Series Mobile Screen Plant

  • 110-512

    Capacity(t/h)
  • 110-138

    Power(kw)
  • 26-29

    Weight(t)
  • Tracked

    Drive mode

Introduction

Product Introduction:

The Mobile Screen Plants is a patented aggregate screening plant designed to screen rock, soils, sand & gravel and c & d materials producing three different sizes of product simultaneously. This heavy-duty machine features standard equipment. The  Mobile Screen Plants unique patented design allows feeding from three sides with a loader or excavator to accommodate any job site application.


Scope of use:

It can be widely used in Screening for various quarries and building demolition waste, mining operations and so on.

The main raw materials are Screen rock,soils,sand & gravel and c & d materials



Product Features & Advantages:

(1) Equipped with a high- performance screening box

(2) Automated screening exercise and conditioning, screening efficiency maximization

(3) The strict management of all operational units, improve product life and reliability

(4) Low noise and low emission characteristics


DWT-S Series Mobile Screen Plants

DWT-S151

DWT-S153

DWT-S181

Screen box(mm×mm)

1500×4500

1500×6100

1800×4800

Deck

2 or 3

2 or 3

2 or 3

Driving Unit

Engine

Cummins or CAT

Cummins or CAT

Cummins or CAT

Performancekw

110

138

110

Feed Hopper

Hopper Volumem3

10

10

10

Belt Feeder

Drive

hydraulic

hydraulic

hydraulic

Main Conveyor belt

Belt Widthmm

1200

1200

1200

Drive

hydraulic

hydraulic

hydraulic

Crawler Unit

Drive

hydraulic

hydraulic

hydraulic

Dimensions and Weight

Working Dimensions

-Length (mm)

16457

19800

16539

-Width (mm)

14282

17800

14327

-Height (mm)

4199

7300

4238

Transport Dimensions

- Length (mm)

14840

19500

15130

- Width (mm)

2861

3300

3245

- Height (mm)

3461

3500

3574

Weight (t)

26

39

29

Note:

1. The processing capacity is the data when the density of the broken material is 1.6x103 kg/m3. The production capacity is related to the physical properties of the crushed material, the feeding mode, the feeding granularity and its composition;

2. Our products are constantly updated and improved, Devo reserves the right to change parameters and design without first notifying the user;

3. The above product configuration is not necessarily the factory standard configuration. Please consult us in detail when purchasing.
