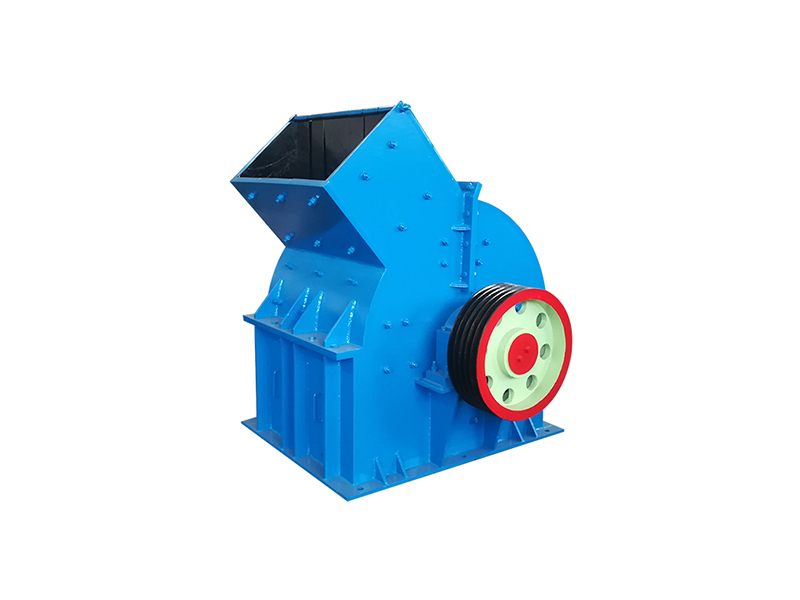

Hammer Crusher

  • PC/PCZ

    Series
  • 5-800

    Capacity(t/h)
  • 200-900

    Max Feed Size(mm)
  • 11-250X2

    Motor Power(kw)
  • 25-35

    Discharging Size(mm)
  • 0.8-8

    Weight(t)

Introduction

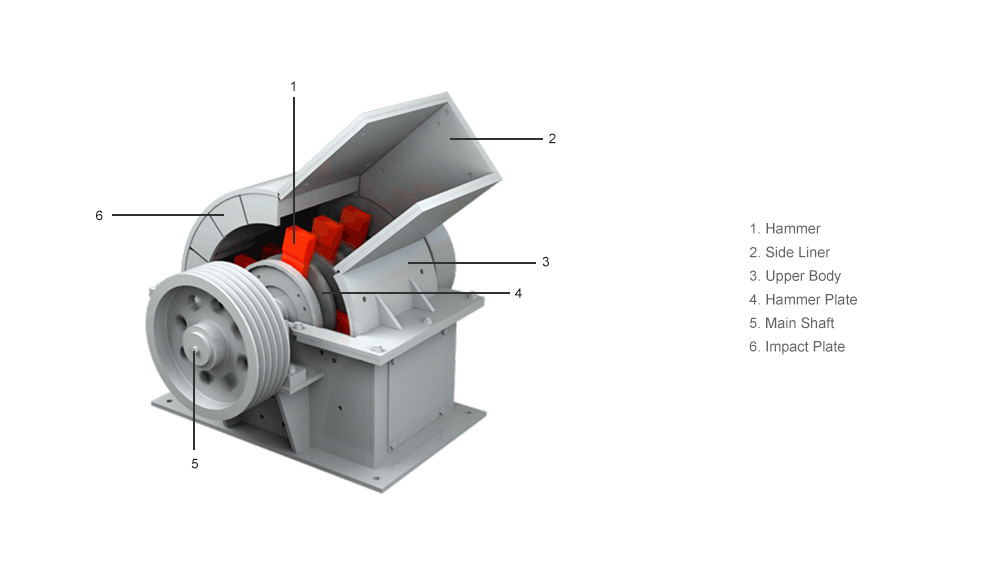

Stone Hammer Crusher Structure


Hammer crusher consists of box, rotor, hammer, counter lining plate, screen plate, etc.


Stone Hammer Mill Crusher Working Principle


Stone Hammer Crusher mainly relies on the impact energy to complete the crushing of materials.

When hammer crusher is working, the motor drives the rotor high-speed rotation, the material into the crusher chamber evenly, and high-speed rotary hammer cuting apart the material to the material, at the same time, the material's own gravity makes material from the high-speed rotating hammer to the body panel and sieve. Materials larger than screen hole size  continues to be crushed by the hammer, until the final discharging granularity through the sieve plate outside.


Advantages of Hammer Crusher Machine


1. New casting hammer, with high wear resistance.

2. The granularity can be adjusted according to customer requirements.

3. Sealing structure solves the dust pollution in the crushing workshop.

4. High crushing ratio (generally 10-25, high up to 50),

5. high production capacity, uniform products, low energy consumption  simple structure, easy operation and maintenance, etc.


Rock Hammer Mill Applications


Hammer crusher is used for crushing all kinds of medium hard and weak abrasive materials. The compressive strength of the material is not more than 100MPa, and the moisture content is less than 15%. It is widely used in coal, salt, chalk, gypsum, brick, limestone crushing process.


Glass Hammer Crusher Video



Hammer Crusher Machine Technical Parameter


hammer mill crusher cost.jpg


ModelMax. Feeding Size(mm)Adjustable Discharge Opening(mm) Capacity
(t/h)
Power
(kw)
Overall Dimensions
(mm)
Weight(t)
PC200×300100101-55.5630×380×6300.6
PC300×400100153-1011900×670×8600.86
PC400×600120158-15221200×1050×12001.55
PC600×8001502010-40551310×1180×13103.1
PC800×10002003016-65901600×1390×15756.2
PC1000×10003004030-801101800×1590×17758.8

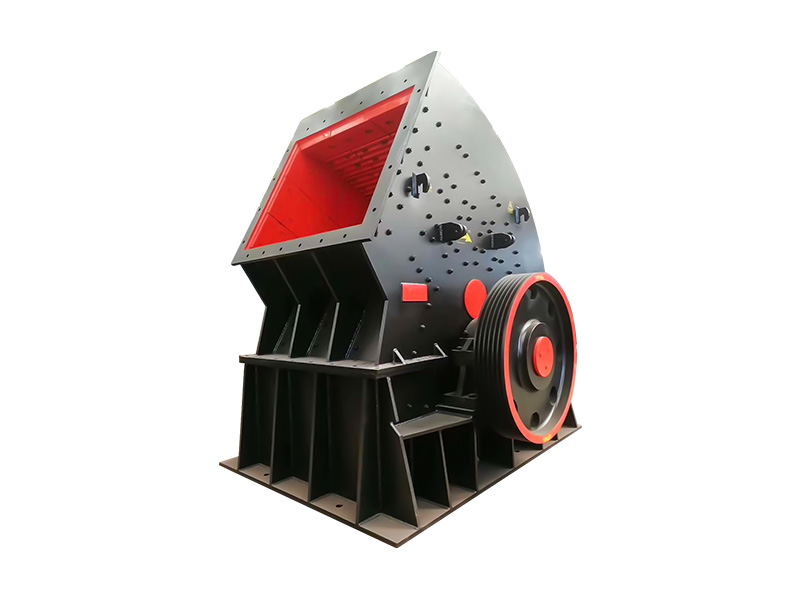

Heavy Hammer Crusher Machine Technical Parameter


hammer mill.jpg



ModelRotor Dia.Length
(mm)
Feed Opening
(mm)
Max. Feeding Size (mm)Capacity
(t/h)
Power
(kw)
Overall Dimensions
(mm)
PCZ- 0706700×570618×51040050-70751950×1340×1480
PCZ- 0808800×750780×61050080-1001322280×1790×1670
PCZ- 0910900×10001070×750600150-200110×22600×2200×1940
PCZ- 10121000×11801255×810650250-300132×22800×2310×2210
PCZ- 12131200×12801350×920750300-350160×22970×2580×2510
PCZ-12161200×15901530×920750400-500200×23070×2840×2580
PCZ-12201220×19502000×920750500-600220×23080×3380×2580
PCZ-16221620×22002200×1100900600-800250×23650×3250×3450

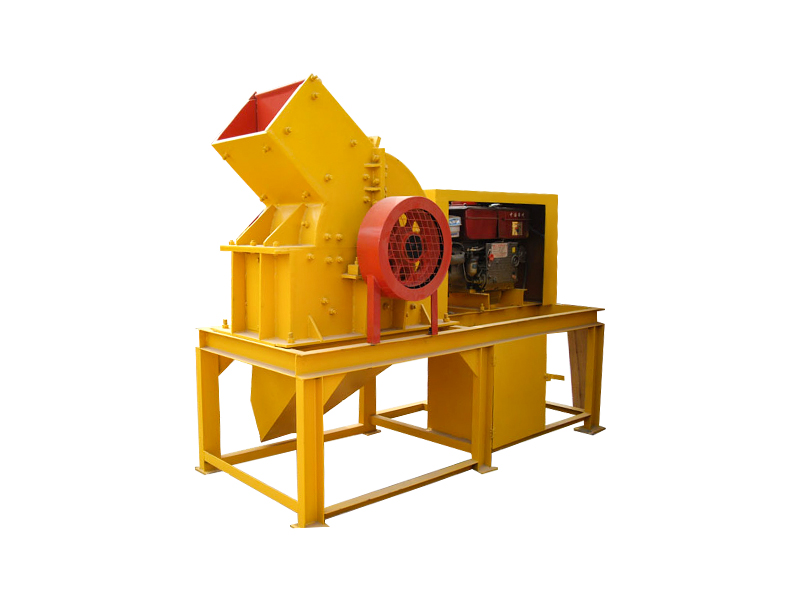

Mobile Diesel Engine Hammer Crusher


diesel hammer crusher.jpg



ModelMax. Feeding Size(mm)Adjustable Discharge Opening(mm) Capacity
(t/h)
Power
(kw)
Overall Dimensions
(mm)
Weight(t)
PCM200×300100101-55.5630×380×6300.73
PCM300×400100153-1011900×670×8601
PCM400×600120158-15221200×1050×12001.85
