PF Horizontal Shaft Impact (hsi) Crusher

  • PF

    Series
  • 50-480

    Capacity(t/h)
  • Customized

    Max Feeding Size(mm)
  • 75-250

    Motor Power(kw)
  • 250-700

    Max Feeding Size(mm)

Introduction

Impact Crusher Introduction


Impact crusher is used as secondary crusher to crush medium and soft mineral & rock, such as limestone, calcite, granite,barite, gypsum, dolomite, concrete etc.


Impact Crusher Structure

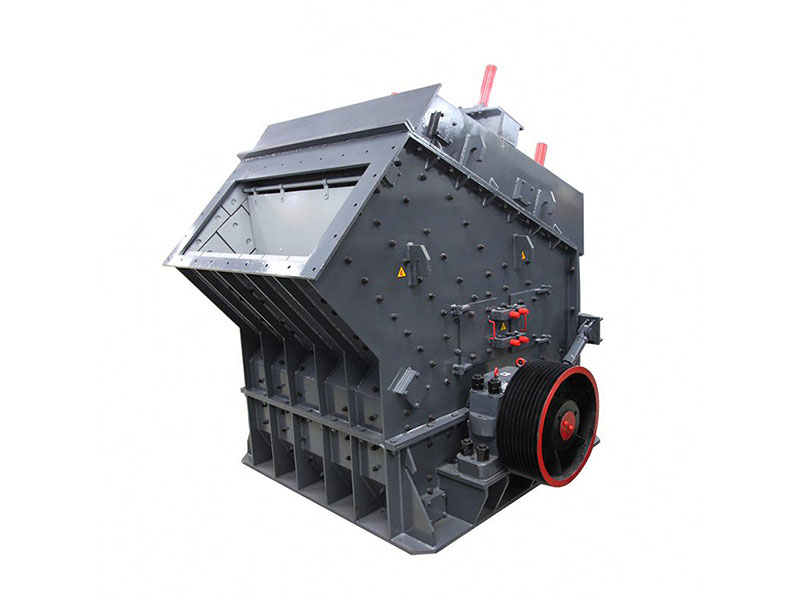

impact crusher structure.jpg


PF Impact Crusher Working Principle


The PF series is a crushing machine that uses impact energy to break down materials. During operation, the motor drives the rotor to rotate at a high speed. When the material enters the action area of the hammer, it is broken by the high-speed impact of the hammer. The broken material is thrown in the tangential direction to the impact plate installed above the rotor to be broken again, and then The impact plate rebounds back to the hammer action zone and breaks again. This process is repeated until the material is broken to the desired particle size and is discharged from the discharge port. Adjusting the gap between the counter frame and the rotor can achieve the purpose of changing the material size and material shape


PF/PFW Series Impact Crusher Advantages


Optimized crushing chamber, higher capacity

The crushing chamber of HC series impact crushers is optimized, which obtains extra capacity, improves crushing reduction and lower your capital costs.


Reliable overload and tramp iron protection device

For the protection of the rotor body and blow bars, the impact crushers optimize overload and tramp iron protection device. The impact aprons retract under excessive load. As soon as the load value returns to normal, the impact aprons resumes its pre-set position, and operation continues without interruption.


Heavy rotor design and unique blow bar fixing system provide reliability

It adopts heavy rotor design, which not only improves reliability, but also increases moment of inertia of rotor and capacity. The fixing of blow bar is improved to make the exchange easy and fixing reliable.


Investment economy

Overall type cast steel structure bearing base improves anti load resistance capacity.


Mature and stable

Advanced Manufacture process and high-end fabrication material

Easy-adjusted learance between impact plante and blow bar

Two or three chamber configuration upon needs


Product Video


PF/PFW Series Impact Crusher Parameters


ModelRotor Spec.
(mm)
Feed Opening
(mm)
Max. Feeding Size(mm)Capacity
(t/h)
Power
(kw)
Overall Dimensions
(mm)
PFW Series
PFW1214IIФ1150×14001100×1430500130-2001322400×2310×2550
PFW1315IIФ1300×15001200×1530600180-3202002700×2570×2800
PFW1318IIФ1300×18001200×1830700240-4002502700×2870×2800
PFW1415IIФ1400×15001450×1530700300-4802502900×2700×3000
PFW1214IIIФ1150×1400570×143025090-1701322550×2310×2100
PFW1315IIIФ1300×1500625×1530300180-2702002960×2570×2380
PFW1318IIIФ1300×1800625×1830300220-3002502960×2870×2380
PFW1415IIIФ1400×1500800×1530350280-3502503120×2650×2660
PF Series
PF1007Ф1000×700400×73025015-60452330×1660×2300
PF1010Ф1000×1050400×108030050-90752455×2086×2800
PF1210Ф1250×1050400×108030070-1301102590×2050×2810
PF1214Ф1250×1400400×143030090-1801322590×2400×2810
PF1315Ф1320×1500860×1520350120-2502002930×2760×3050
PF1320Ф1320×2000860×2030500160-3503403320×3218×2613
