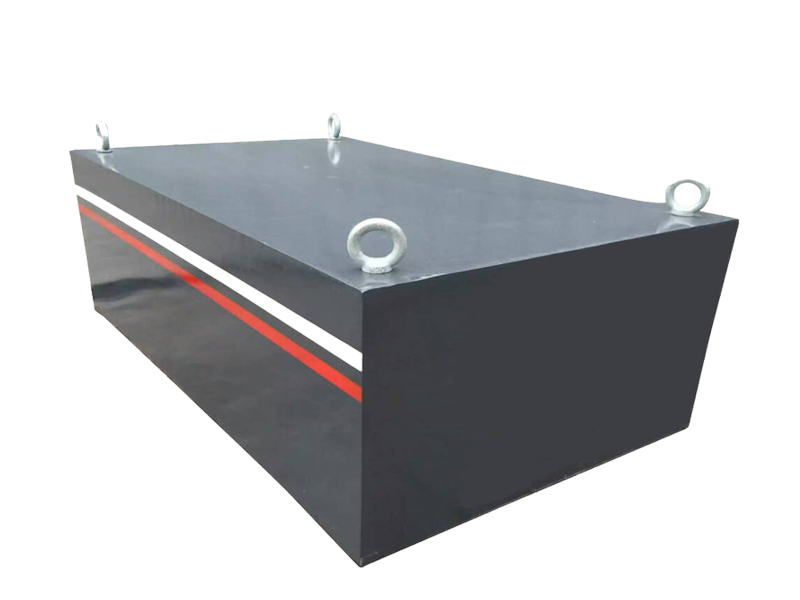

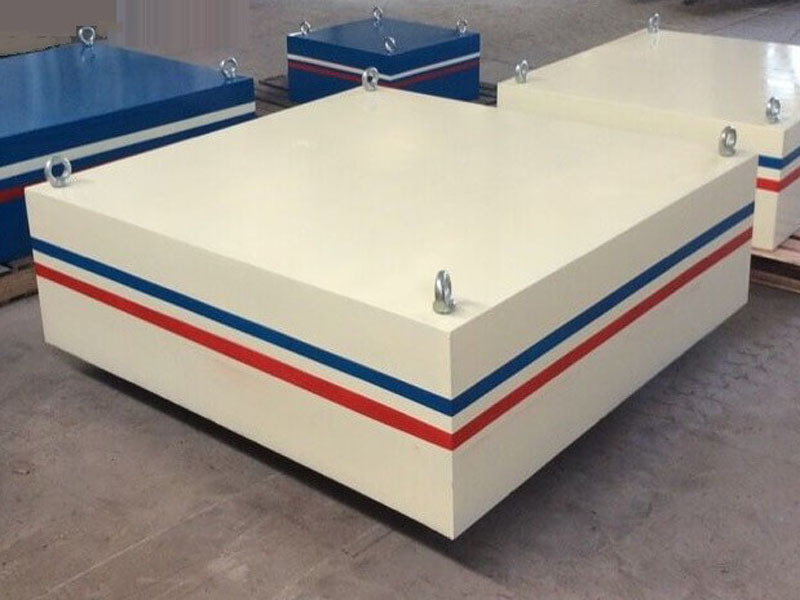

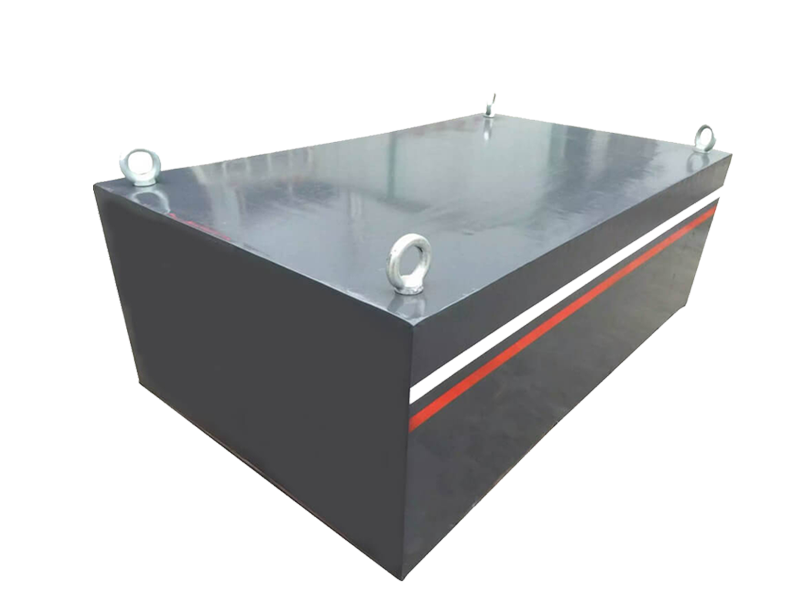

RCYB Suspended Permanent Magnetic Separator

RCYB
Series
500-1400
Belt Width(mm)
150-400
Suspension Height(mm)
206-2350
Weight(kg)
90-350
Material Thickness(mm)
4.5
Belt Velocity(m/s)

Get Quotation

Chat Now

Send E-mail

Introduction
Parameters
Solution
Related Products
Contact us

Applications

Product Introduction:

RCYB Suspended Permanent Magnetic are positioned over moving conveyor belts in a chute for the purpose of removing ferrous contaminants from bulk products flows.It is designed to remove ferrous contamination from conveyed product on a conveyor belt or open chutes before they can cause damage to the downstream equipment.

Product Features & Advantages:

1.No moving parts;

2.No power supply required;

3.Simple in and easy to use;

4.Reliable in operation and free of maintenance;

5.Rare earth magnet provide stronger, deeper and uniform magnetic field.

Working Principle:

RCYB Suspended Permanent Magnetic has no moving parts and requires no power supply. A convenient three-point sling assembly is included with your magnet. Just suspend it over the conveyor or over the headpulley and it’s ready to pick up those stray metal fragments before they can cause damage to downstream equipment. When the magnet surface starts to fi ll up, swing the magnet away from the conveyor and dislodge the attracted metal. Swing it back over the conveyor and you’re back in operation

Parameters

Model	Belt width Adaptive (mm)	Suspension Height Rated (mm)	Belt Velocity (m/s)	Material Thickness (mm)	Weight (kg)	Overall Dimensions (L×W×H)mm
RCYB-5	500	150	4.5	90	206	500	350	260
RCYB-6.5	650	200	4.5	150	450	650	600	300
RCYB-8	800	250	4.5	200	680	950	950	380
RCYB-10	1000	300	4.5	250	1180	1100	1000	380
RCYB-12	1200	350	4.5	300	1670	1300	1340	420
RCYB-14	1400	400	4.5	350	2350	1500	1500	420
