RCYD Series Self-Clean Permanent Magnetic Separator

  • RCYD

    Series
  • 500-1400

    Belt Width(mm)
  • 150-400

    Suspension Height(mm)
  • 60/70

    Magnetic Intensity(mT)
  • 80-350

    Material Thickness(mm)
  • 4.5

    Belt Velocity(m/s)

Introduction

Product Introduction:

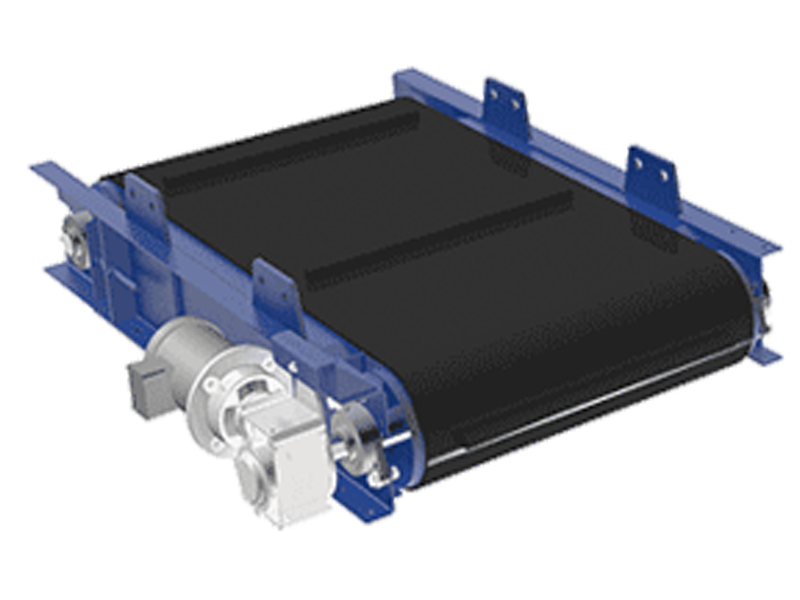

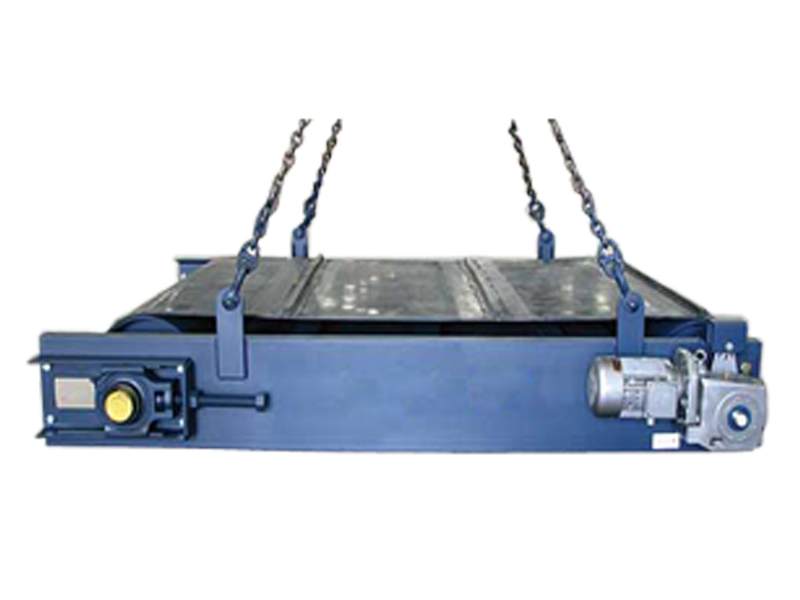

RCYD series self-cleaning Permanent Magnetic have a continuously running belt designed for separation of ferrous metal in a variety of over-the-belt conveyor applications. Our cross belt separators are designed to provide a reliable and extremely effective means of metal extraction. The cross belt magnet is manufactured with a powerful plate magnet, heavy duty steel frame, vulcanised rubber belt and a motor and reducer. The magnet may be suspended either cross belt (perpendicular to the product flow) or inline (parallel above the product flow).



Product Features & Advantages:

1.Rare Earth magnetic material used, creating a permanent magnet with maximum field depth for the size and application required;

2.No power needed to run the magnetic field;

3.Belt options available (armoured for sharp contamination);

4.Good for heavy contaminated products;

5.Different magnetic strengths for difference suspension heights to fit your applications;

6.Sizes to fit for any belt width;

7.Special requirements can be custom built.



Working Principle:

RCYD series self-cleaning Permanent Magnetic has no external power source is required for the magnet. During opera-tion, tramp iron contained in-side material conveyed under the magnet is magnetically attracted. Magnetic force lifts the metal to the face of the magnet. Metal attracted by the self-cleaning model is automatically and continuously removed from the magnet face by a belt that travels around the body of the magnet.


Parameters


Model

Belt   width Adaptive (mm)

Suspension   Height Rated (mm)

Magnetic   Intensity SHR (mT)

Material   Thickness (mm)

Motor   Power (kw)

Belt   Velocity (m/s)

Weight   (kg)

Overall   Dimensions (L×W×H) (mm)

RCYD-5

500

150

60

80

1.5

4.5

750

1900

735

935

RCYD-6.5

650

200

70

150

2.2

4.5

1200

2165

780

1080

RCYD-8

800

250

70

200

2.2

4.5

1400

2350

796

1280

RCYD-10

1000

300

70

250

3.0

4.5

2120

2660

920

1550

RCYD-12

1200

350

70

300

4.0

4.5

3350

2900

970

1720

RCYD-14

1400

400

70

350

4.0

4.5

4450

3225

1050

1980
