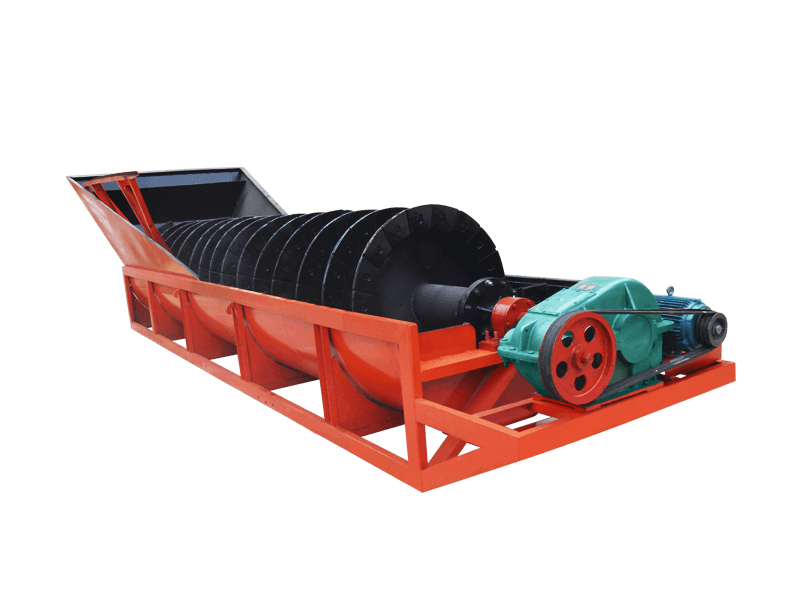

WL Series Spiral Sand Washers

  • WL

    Series
  • 508-1115

    Screw Diameter(mm)
  • 6705-9782

    Length Of Tub(mm)
  • 20-350

    Capacity(t/h)
  • ≤10 mm

    Max Feeding Size(mm)
  • 17-38

    Speed Of Screw(r/min)

Introduction

Product Introduction:

WL Series Spiral Sand Washers can wash and sever the powder and dirt. Its novel seal structure and adjustable overflow barrier plus reliable driving system make an effective result of washing.



Working Principle:

The spiral classifier is based on the principle that the differents of solid particle size, the specific gravity , and the sedimentation velocity in the liquid . The fine ore particles float in the water to overflow and the coarse ore particles sink to the bottom of the groove. A grading device for mechanical grading by pushing the upper part of the screw, which can filter the powdered powder in the mill to filter, and then screw the coarse material into the grinding machine feed port by using a spiral rotary piece, and filter The fine material discharged is discharged from the overflow pipe. The base of the machine is made of channel steel, and the body is welded by steel plate.



Product Features & Advantages:

WL Series Spiral Sand Washers has the characteristics of reasonable structure, convenient maintenance, high output, low power consumption, and high degree of cleanness. Its novel sealed structure, totally-enclosed oil-bath transmission system, and adjustable overflow slice ensure the characteristics of high efficiency, durability, cleanness, and good dehydrating effect, and reliable product size.



Parameters


Model

WL201

WL241

WL301

WL361

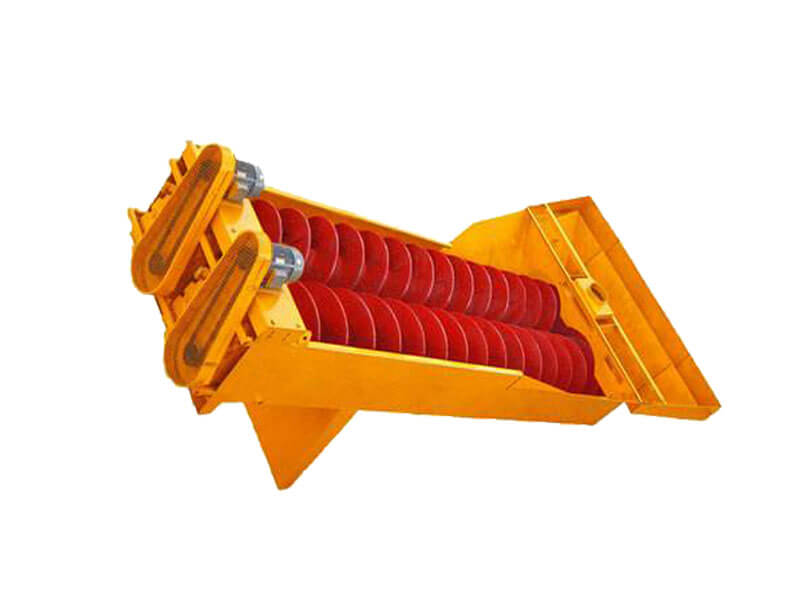

2WL361

WL441

2WL441

Screw   Diameter (mm)

508

610

762

915

915

1115

1115

Length   Of Tub (mm)

6705

7225

7620

7585

7585

9782

9782

Max   Feed Size(mm)

≤   10

≤   10

≤   10

≤   10

≤   10

≤   10

≤   10

Capacity   (t/h)

20

40-50

50-75

100

200

175

350

Speed   of Screw (r/min)

38

32

26

21

21

17

17

Motor   Power (kw)

5.5

7.5

11

11

2×11

15

2×15

Water   Consumption (t/h)

6-60

6-63

9-63

10-80

20-160

20-150

40-300

Overall   Dimensions (mm)(L×W×H)

8000×2343×1430

8000×2050×1400

8545×2650×3862

8500×2810×3600

8420×3765×3960

10970×3945×4720

10970×5250×4720

Weight   (t)

3.2

3.80

5.23

6.27

11.11

10.18

17.94
