Roll Crusher

  • 2PG/4PG

    Series
  • 1.5-900

    Capacity(t/h)
  • 25-150

    Max Feed Size(mm)
  • 6-400

    Power(kw)
  • 0.5-30

    Discharging Size(mm)

Introduction

Roll Crusher Introduction


The roller crusher is suitable for medium and fine crushing of solid materials, such as coal, coal gangue, coke, limestone, iron ore, quartz stone and sulfur ore in cement, chemical industry, electric power, mining, metallurgy, building materials, refractory materials, coal mines.

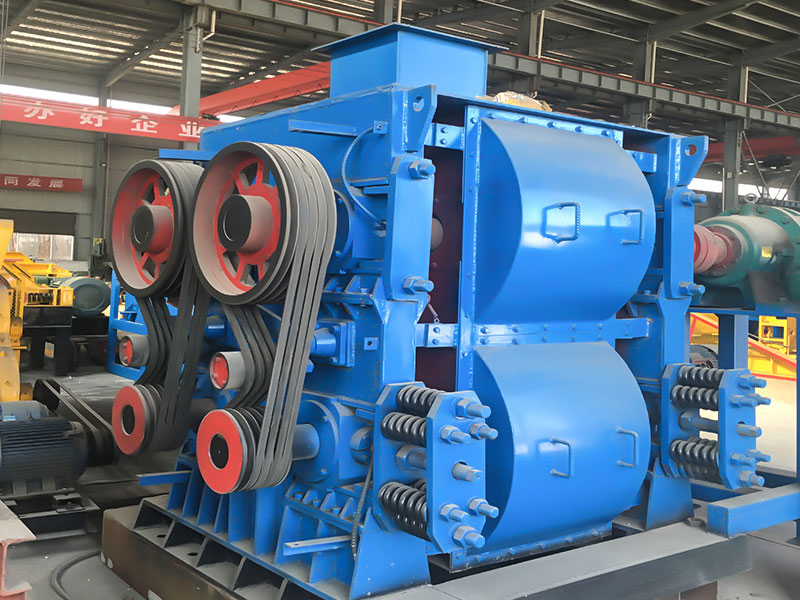

Roller crusher is mainly divided into double roller crusher and four roller crusher.


roller crusher sale.jpg


roller crusher for sale.jpg

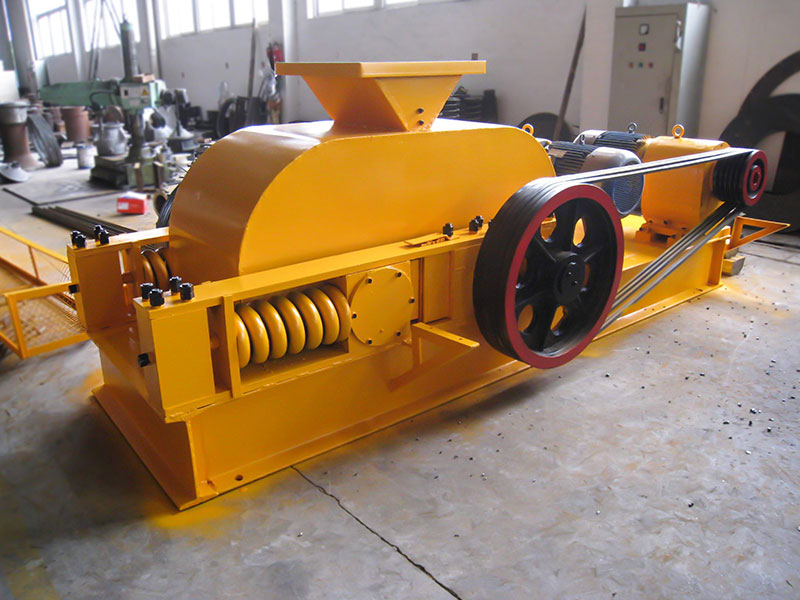

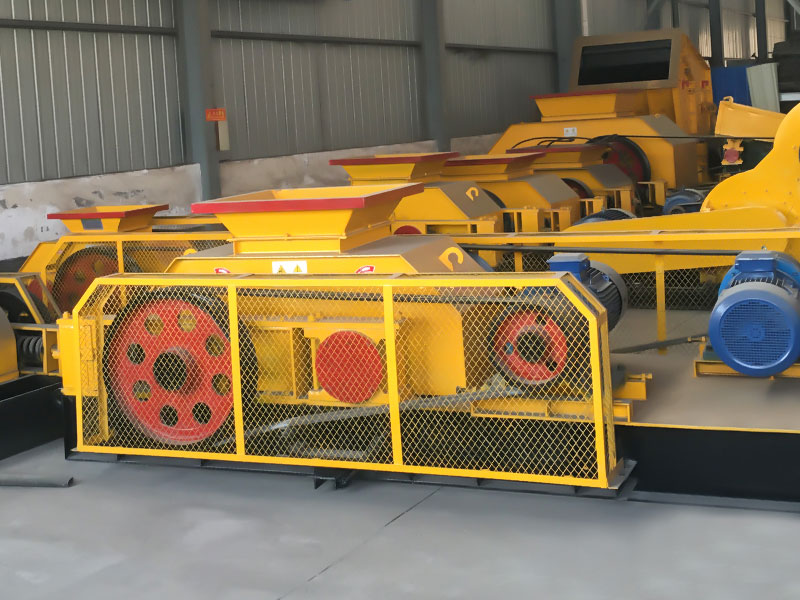

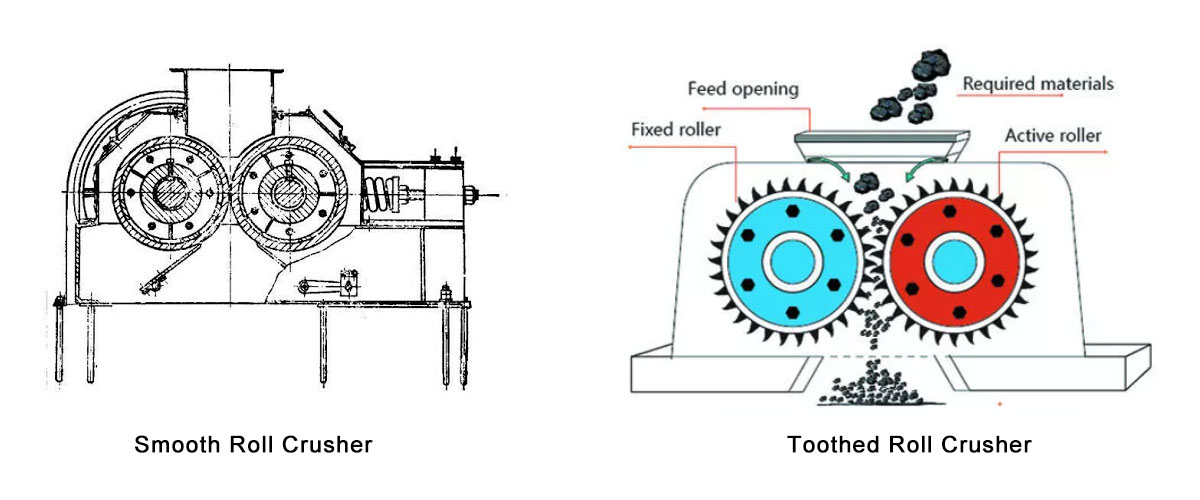

The roller crusher is equipped with two crushing rollers. According to the particle size required by the user, roll crusher can be divided into smooth roller crusher and tooth roller crusher. Smooth roller crusher is suitable for fine crushing operations where the feed particle size is less than 80mm and the final size 1-10mm. The gear roller type is suitable for the medium and fine crushing with feed particle size is less than 150mm and the finished product particle size is 5-30mm.

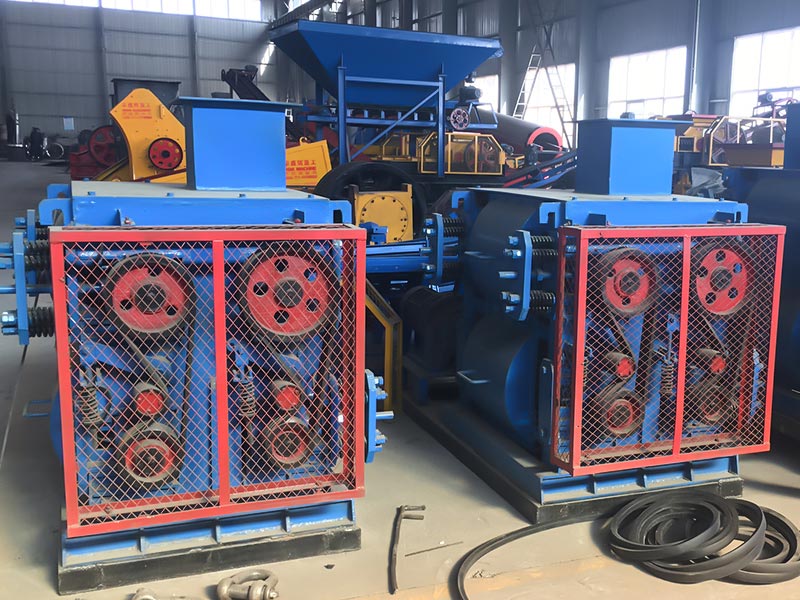

The four-roll crusher is suitable for the medium and fine crushing operation with the feed particle size less than 90mm and the finished product particle size 0.3-10mm.


Roll Crusher Working Principle


The roller crusher uses the high strength abrasion resistant alloy crushing roller. It relys on the high extrusion pressure generated by the relative rotation to crush the material. After the material enters the two-roller gap (V-shaped crushing chamber), By the extrusion pressure and shear force of the relative rotation of the two crushing rollers. Under extrusion, the material is broken into the required particle size and discharged from the discharge outlet.


Advantages of Roller Crusher


1. High Crushing Rate, high crushing efficiency, low over-crushing rate;


2. Wear Resistant Parts: the double roll crusher roller is equipped with a replacement wear resistant lining board with wear resistant material, with long service time;


3. The output particle size can be adjusted less than 150mm, automatically adjusted by adjusting the clearance of the roller, to meet the different crushing requirements of customers;


4. The roller crusher has a simple and reliable structure, and when it encounters large and hard clinker blocks, it can be handled manually under the condition of continuous operation.



Double Roll Crusher Equipment Technical Parameter



ModelMax Feeding Size(mm)Discharging Size(mm)Capacity(t/h)Power(kw)ProtectDrive
2PG400×250251-51.5-103×2Spring

Triangle


Belt


or


 Coupling

2PG400×400351-103-305.5×2
2PG600×500401-206-5015×2
2PG800×600601-2010-10018.5×2
2PG1000×800801-3015-13030×2

Spring


 Hydraulic


 Coupler

2PG1200×800901-3030-25037×2
2PG1200×1200901-3040-35055×2
2PG1600×12001001-3060-42075×2
2PG1600×16001101-3075-550110×2
2PG1800×16001301-3090-700132×2
2PG2000×18001501-30100-900200×2



Four Roll Crusher Equipment Technical Parameter


ModelMax Feeding Size(mm)Discharging Size(mm)Capacity(t/h)Power(kw)ProtectDrive
4PG400×400200.3-102-301115Spring

Triangle


Belt


or


 Coupling

4PG600×500400.3-105-603037
4PG800×600600.3-108-903745
4PG800×900600.3-1012-1204555
4PG800×1200600.3-1020-1805575

Spring


 Hydraulic


 Coupler

4PG1000×1200800.3-1030-2207590
4PG1200×1200900.3-1045-26090110
4PG1200×1600900.3-1055-330110132
4PG1200×2400900.3-1070-350132160
