PFL Vertical Compound Crusher

  • PFL

    Series
  • 10-190

    Capacity(t/h)
  • < 3-5

    Output Size(mm)
  • 15-185

    Motor Power(kw)
  • 370-1000

    Main shaft rotating(r/min)

Introduction

Vertical Shaft Hammer Crusher Introduction


The hammer vertical shaft crusher is a heavy-duty vertical shaft hammer crusher. It is mainly used in material crushing and sand making machine process.


Composite crusher is a non sieve, adjustable crushing equipment, widely used in cement clinker finely homework, also can be used for dolomite, coke gemstones, lead-zinc, serpentine, blast furnace slag, coal gangue, phosphate rock and other medium hard material crushing operation, especially suitable for hard limestone, dolomite, granite, basalt artificial sand or highway pavement stone processing broken.

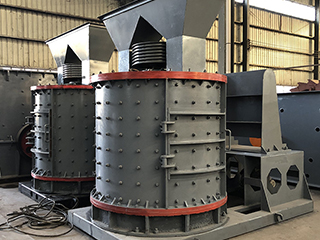

PFL Vertical Compound Crusher.jpg


Features of Stone Compound Crusher


(1) Reasonable structure, and the operation cost is low.

(2) high crushing rate, only 2~3s in the crushing chamber,energy saving.

(3) High crushing efficiency, high output capacity

(4) Less working noise is less than 75 dB (DB level), less dust pollution.

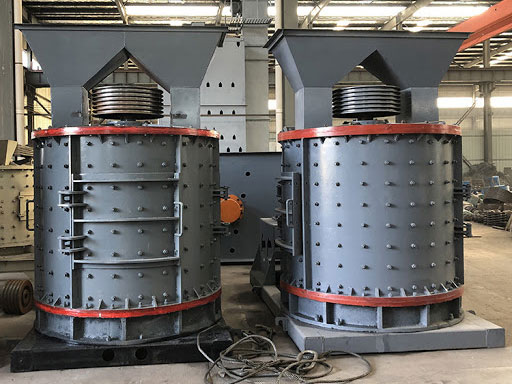

PFL Vertical Compound Crushers.jpg


Vertical Composite Crusher Technical Parameter


ModelMain shaft rotating(r/min)Feeding size(mm)Output size(mm)Motor Power(kw)Capacity(t/h)
PFL8001000< 50<3-5  60-90%15-2210-20
PFL1000750< 120<3-5  60-90%37-5520-45
PFL1250530< 150<3-5  60-90%55-7540-70
PFL1500495< 120<3-5  60-90%13270-100
PFL1750424< 120<3-5  60-90%160130-190
PFL2000370< 120<3-5  60-90%185100-160
