Tajikistan 100tph river pebble sand production line
-
Tajikistan
Location -
River pebbles
Material -
100
Capacity(tph)
Get Quotation
Chat Now
Send E-mailIntroduction

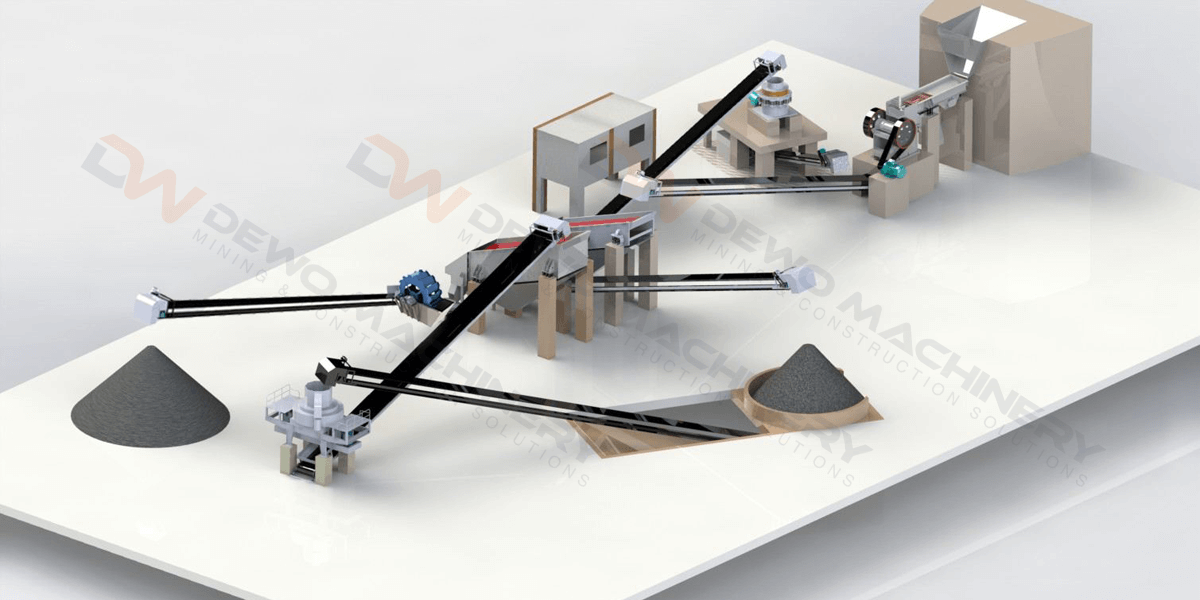

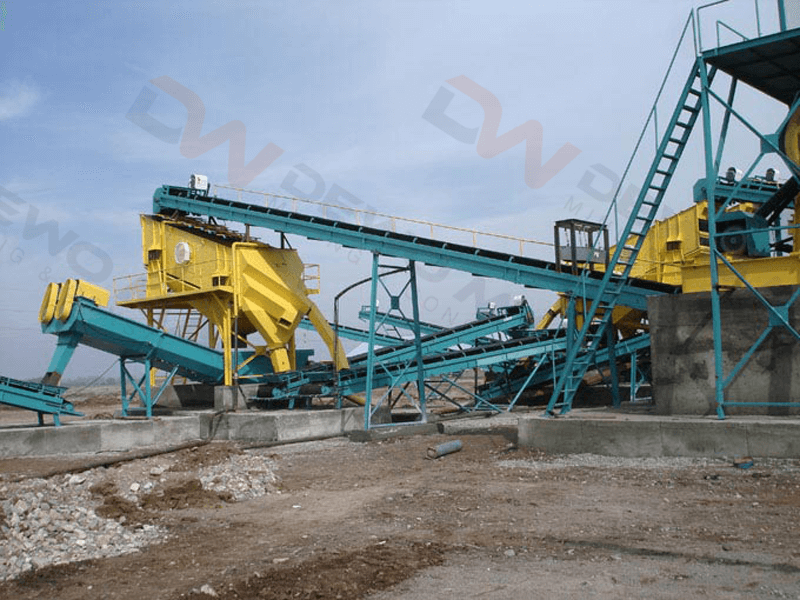

The production line adopts a semi-dry production process, which is energy-saving and environmentally friendly. The optimized process concept is more advanced. In order to ensure the quality of sand and gravel, the production line adopts three-stage crushing + two-stage screening + one-stage sand washing process; the quality of the produced sandstone is stable and the particles are uniform, and the customer is very satisfied.
Use location: Tajikistan
Application area: gravel aggregate
Finished product output: 100 tph
Processing raw materials: river pebbles
Feeding particle size: ≤500mm
Finished product size: 0-30mm
Device configuration table
Product | Type | Quantity(pcs) | Power(kw) |
Vibrating feeder | FGT351 | 1 | 2*2.2 |
Jaw crusher | JE401 | 1 | 75 |
Cone crusher | YHP200C | 1 | 90 |
Vertical impact crusher | XV311 | 1 | 2*110 |
Circular vibrating screen | YK6X1545 | 1 | 18.5 |
Circular vibrating screen | 2YK6X2160 | 1 | 22 |
Spiral sand washer | WL361 | 1 | 11 |
