China 400tph river pebble sandstone production line

  • China

    Location
  • River pebbles

    Material
  • 400

    Capacity(tph)

Introduction

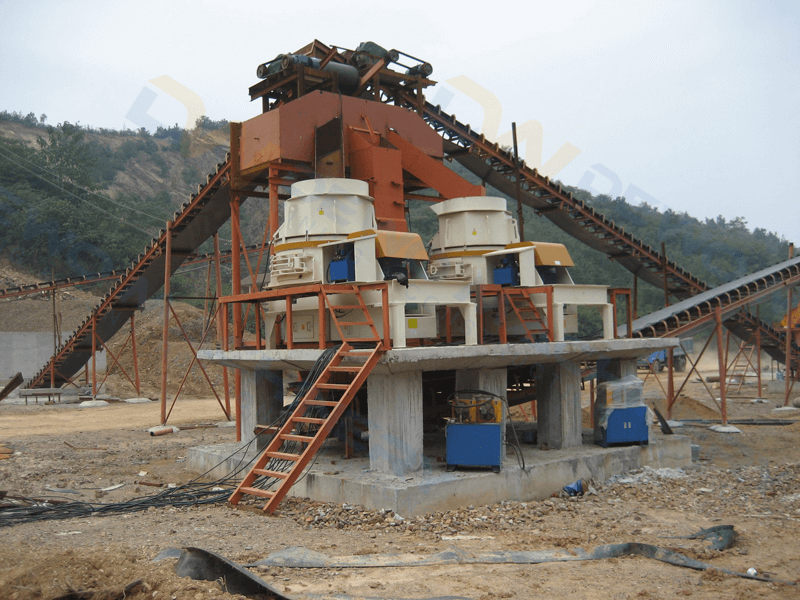

The production line adopts a two-wire configuration, which can be turned on at the same time for two lines or single line; this can be repaired in sections and the reliability is higher. The production line was commissioned in 2013 and the equipment is running well.

Use location: China Sichuan

Application area: gravel aggregate

Finished product output: 400 tph

Processing raw materials: river pebbles

Feeding particle size: ≤600mm

Finished product size: 0-5mm, 5-10mm, 10-15mm, 15-30mm



Device configuration table

Product

Type

Quantity(pcs)

Power(kw)

Vibrating feeder

FS431

2

2*15

Jaw crusher

JE431

2

2*110

Cone crusher

YHP300C

2

2*220

Vertical impact crusher

XV431

2

2*2*220

Circular vibrating screen

YK6X2160

2

2*18.5

Circular vibrating screen

4YK6X2460

4

4*30

Spiral sand washer

WL361

2

2*11
