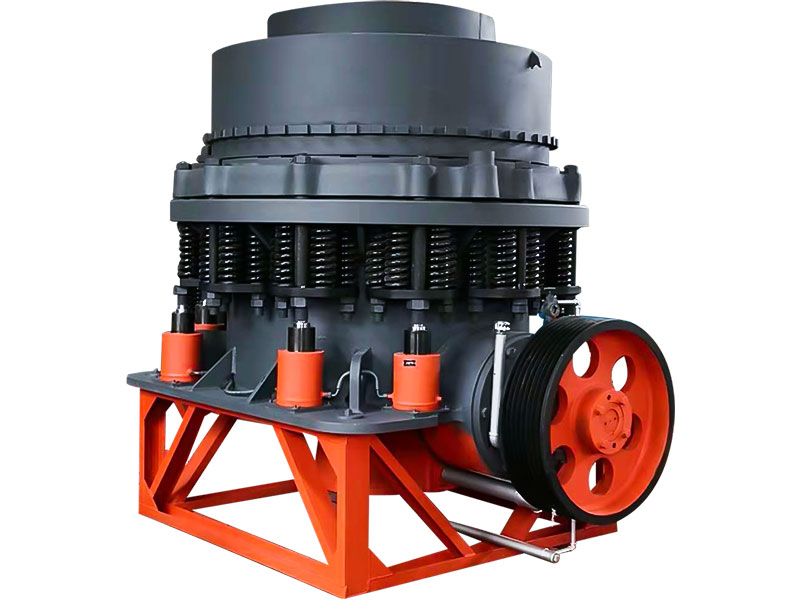

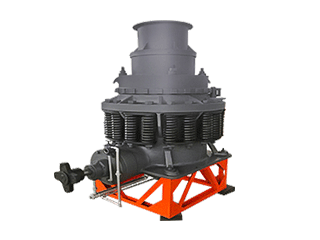

HS Series Symons Cone Crusher

  • HS

    Series
  • F/M/C/SF/SC/SM

    Cavity
  • 600-2134

    Diameter Of Cone(mm)
  • 16-1941

    Capacity(t/h)
  • 22-400

    Motor Power(kw)
  • 4.5-89.5

    Weight(t)

Introduction

HS Series Symons Cone Crusher Introduction


HS Series Symons Cone Crusher is widely used in the metallurgical industry, construction materials industry, road building industry, chemical industry and silicate industry. It is suitable to crush ores and rocks with medium hardness and medium hardness above. It has features of strong crushing force, reliable structure, high efficiency, high capacity, low operating cost, easy adjustment, economical to use and so on. Also symons cone crusher uses the compensating lubricating grease sealing, it can avoid lubrication oil being polluted by dust, so that all parts work reliably and have a long operating life. The safety insurance system of cone crusher uses several spring sets, so the matter and iron ore are down from the crushing cavity and do not damage the crusher, simply and reliably. The cone crusher has standard type and short head type, the standard type is suitable to medium size and the short head type for medium and fine crushing.


Symons Cone Crusher Working Principle

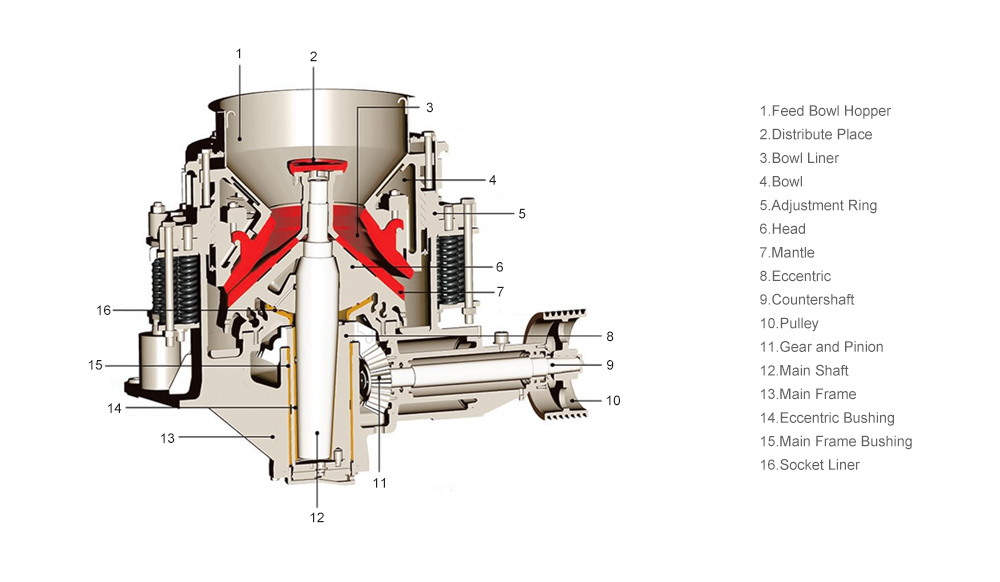

HS cone crusher is mainly composed of frame, fixed cone assembly, moving cone assembly, spring mechanism, bowl type shaft frame and transmission; its auxiliary part is cleaned by electrical system, thin oil lubrication system and hydraulic pressure. The cavity system is composed.

During operation, the motor drives the eccentric sleeve through the V-belt, the large pulley, the transmission shaft, the bevel gear, and the large bevel gear. The broken cone axis is rotated under the eccentric bushing, so that the wall surface is broken. Close to the surface of the rolling wall, and then the material is continuously crushed, crushed and bent in the annular crushing cavity composed of the fixed cone and the moving cone. After multiple extrusions, impacts and bending, the material is broken to the desired particle size and discharged through the lower portion.


HS Symons Cone Crusher Features & Advantages


1. High performance and low cost

Optimized cavity type, reasonable speed and stroke combination, stable and reliable performance, improved production capacity and reduced production cost. Using the principle of laminating and crushing, the number of finished cubes is increased, the particle size is uniform, and the gradation is reasonable.


2. reliable operation

The large-diameter main shaft and heavy-duty main frame ensure the equipment is rugged and reliable. The multi-point control of the vertical oil lubrication system ensures double protection of bearing lubrication. Automatic protection is provided by the iron protection device and the automatic control system.


3. easy to operate and repair

All components can be removed from the top or side for easy removal of the fixed cone and moving cone assembly. The hydraulic clearing system quickly cleans the crushing chamber, greatly reducing downtime.

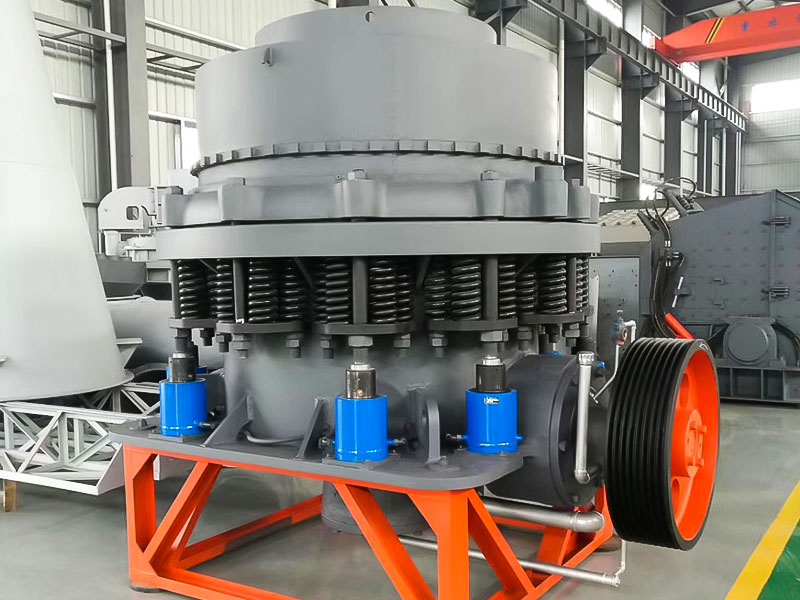

Cases of Symons Cone Crushers




Symons Cone Crushers Working Video



Symons Cone Crusher Parameters



Model

Cavity

Diameter   Of Cone(mm/feet)

Max   Feeding Size
  (mm)

Capacity(t/h)

Speed(r/min)

Power(kw)

Dimension
  (mm)

HS36B

Coarse

914 (3')

60

59-163

580

75

2821×1880×2164

HS36B

Fine

914 (3')

80

45-91

580

75

2821×1880×2164

HS36D

Coarse

914 (3')

90

65-140

580

75

2821×1880×2410

HS36D

Fine

914 (3')

30

27-90

580

75

2821×1880×2410

HS51B

Coarse

1295 (4 1/4')

40

172-349

485

185

2800×2342×2668

HS51B

Fine

1295 (4 1/4')

85

109-181

485

185

2800×2342×2668

HS51D

Coarse

1295 (4 1/4')

150

109-227

485

160

2800×2342×2668

HS51D

Fine

1295 (4 1/4')

150

36-163

485

160

2800×2342×2668

HS66B

Coarse

1650 (5 1/2'

35

299-635

485

240

3911×2870×3771

HS66B

Fine

1650 (5 1/2'

65

181-327

485

240

3911×2870×3771

HS66D

Coarse

1650 (5 1/2'

85

190-336

485

240

3917×2870×3771

HS66D

Fine

1650 (5 1/2'

115

90-209

485

240

3917×2870×3771


Note:

1. The processing capacity is the data when the density of the broken material is 1.6x103 kg/m3. The production capacity is related to the physical properties of the crushed material, the feeding mode, the feeding granularity and its composition;

2. Our products are constantly updated and improved, Devo reserves the right to change parameters and design without first notifying the user;

3. The above product configuration is not necessarily the factory standard configuration. Please consult us in detail when purchasing.
